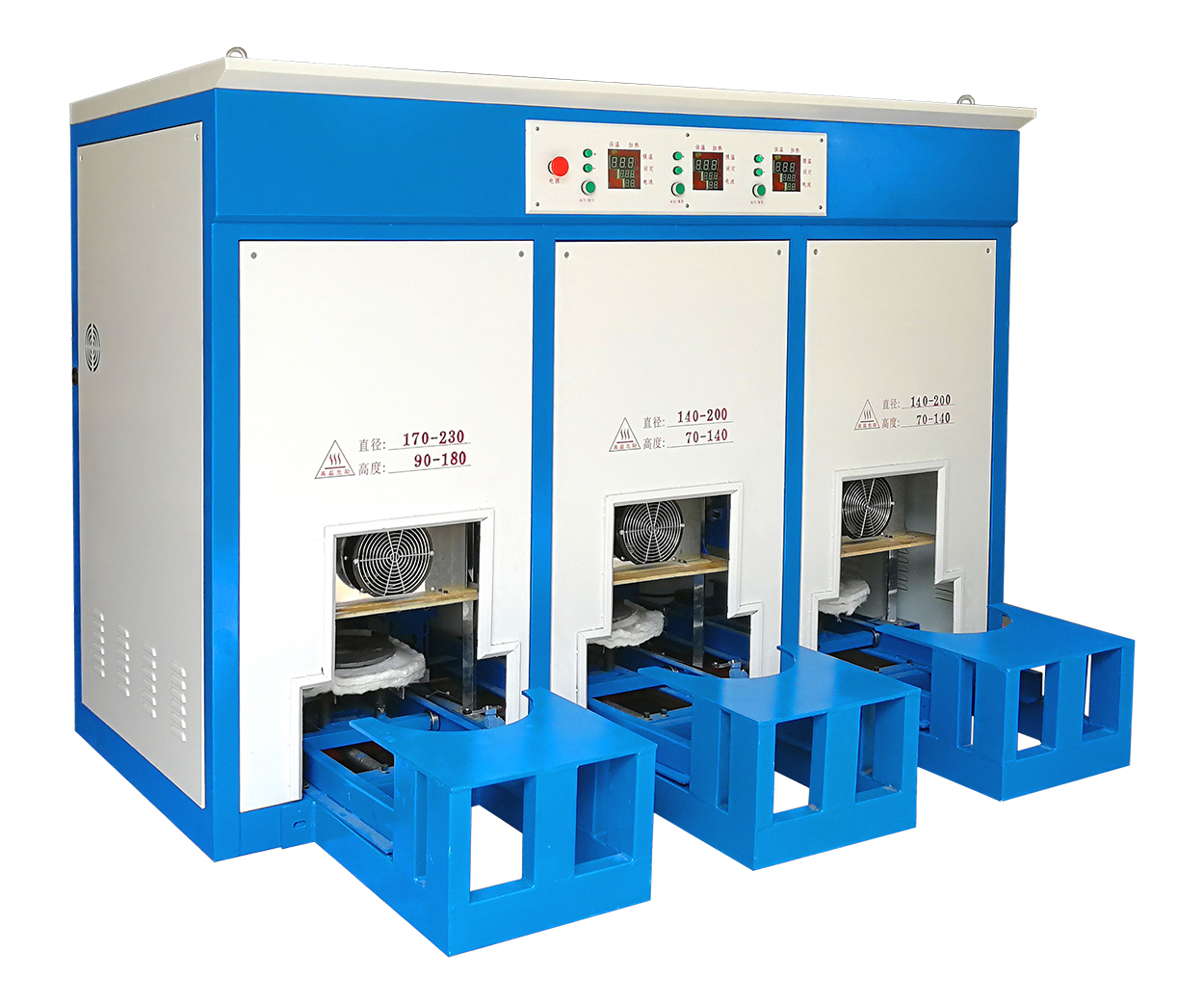

M series electromagnetic mould heating furnace
Taxonomy:M series electromagnetic mould heating furnace
- Click times:
- Date of release:2019/03/06
- Specifications:
- Type:
- inquiry
- introduce
Technical parameters:
88爱彩Input voltage: three-phase four-wire 380V 10%
88爱彩Input power: single burner 12KW
Heating mode: electromagnetic induction heating
88爱彩Heating temperature: 430 ~ 500 degrees
88爱彩Cooling mode: air cooling
Operation mode: each burner is independent of P L C semi-automatic control
88爱彩Temperature control: P, L and C automatic isothermal and thermal insulation control
88爱彩Protection mode: short - phase, anti - phase, over - current, short - circuit, over - temperature protection, time - out protection, etc
88爱彩Display output: digital display of current temperature, working current,
88爱彩Fault code; Indicator light shows working status.
Case material: spraying
Features:
88爱彩1. M series mould furnace adopts the loading and unloading mode of mould movement.
2. Use screw to drive the mold in and out and coil up and down.
3. The status indicator is the on-board light-emitting diode.
88爱彩Model specification:
| model | The furnace capita | Customizable diameter | Customizable height | Heating time | Installation dimensions |
| J R - M 2 5 0 2 | 2 | ∮130～250 | 60～250 | 15～25 | 1400×1170×1500 |
| J R - M 2 5 0 3 | 3 | ∮130～250 | 60～250 | 15～25 | 2050×1170×1500 |
| J R - M 3 5 0 2 | 2 | ∮250～350 | 60～350 | 25～55 | 1600×1270×1600 |
| J R - M 3 5 0 3 | 3 | ∮250～350 | 60～350 | 25～55 | 2450×1270×1600 |
Note: dimension unit in the table: mm; Time unit: minutes.
88爱彩Models exceeding the specifications in the table can be customized.
In order to ensure the heating effect, it is suggested that the heated mold should be in the range of customized diameter - 60 m m, and the height should be more than half of the customized height.
